Piezoelectric Positioning Systems: Accuracy Selection Guide

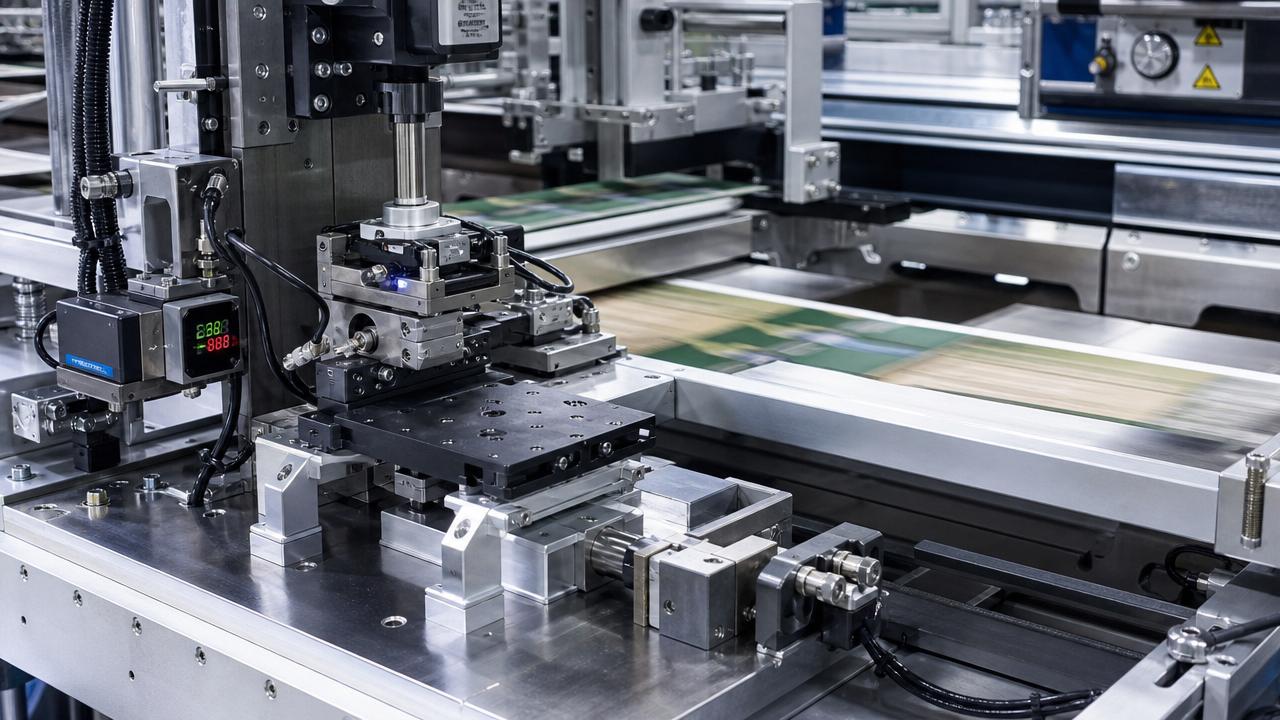

Selecting Piezoelectric Positioning Systems for industrial printing, corrugated converting, post-press, or tissue machinery requires more than comparing nanometer specifications on a datasheet.
For technical evaluators, the real challenge is matching accuracy, load capacity, travel range, dynamic response, and control stability to demanding production environments.
This guide explains how to assess piezo positioning performance in practical terms, helping engineering teams identify systems that support precise alignment, faster process control, and reliable long-term output.
Start with the production problem, not the smallest resolution number
The most common selection mistake is treating the lowest advertised resolution as the main measure of positioning quality.
In real converting and printing equipment, the useful question is whether the actuator can repeatedly correct the process error under load.
For inkjet printhead alignment, coating gap control, optical inspection, or micro-adjustment of tooling, usable accuracy depends on the complete motion chain.
That chain includes the piezo actuator, flexure or bearing guidance, sensor feedback, controller bandwidth, mounting stiffness, and thermal behavior.
A system rated for sub-nanometer resolution may still underperform if it drifts, rings mechanically, or saturates under production acceleration.
Technical evaluators should begin by defining the process error that must be corrected and the time allowed for correction.
For example, a digital printer may require nozzle-to-substrate positioning stability during fast substrate movement and frequent job changes.
A corrugated converting application may prioritize force stability and robust alignment despite vibration from belts, knives, or board transport.
Once the process problem is clear, accuracy selection becomes an engineering match rather than a datasheet comparison exercise.
Clarify what “accuracy” means in your application
Accuracy is often used loosely, but Piezoelectric Positioning Systems involve several different performance terms that affect selection.
Resolution describes the smallest commanded step the system can theoretically produce, usually under ideal laboratory conditions.
Repeatability measures how closely the system returns to the same position under the same command and operating conditions.
Linearity describes how closely actual motion follows the commanded motion across the travel range, especially important in scanning or calibration tasks.
Stability describes how well the position is maintained over time despite heat, load changes, vibration, and controller noise.
For industrial machinery, repeatability and stability are often more valuable than extreme resolution numbers with little production relevance.
A printhead adjustment stage may not need the smallest possible step, but it needs reliable correction after thousands of movements.
A die-cutting inspection module may require stable optical focus rather than long travel, especially when defects are measured at high speed.
When reviewing specifications, ask suppliers how accuracy was measured, over what travel, under what load, and at what temperature.
Without those test conditions, comparing values across vendors can lead to a misleading purchasing decision.
Match travel range to correction needs, not future wish lists
Piezo positioning is strongest in short-stroke, high-precision movement, but different architectures offer different travel capabilities.
Direct piezo actuators typically provide very fast motion over short ranges, often suitable for micro-alignment or vibration compensation.
Flexure-guided stages add controlled motion and reduce friction, making them useful for precise optical or printhead positioning.
Piezo motor or walking systems can provide longer travel, but they may trade off speed, smoothness, or control simplicity.
Evaluators should calculate the true correction range needed during operation, setup, maintenance, and expected substrate variation.
Oversizing travel can increase cost, footprint, control complexity, and mechanical compliance without improving actual production quality.
Undersizing travel creates a different risk: the system may reach its limit during calibration or thermal expansion compensation.
In paper-based manufacturing, substrate thickness, humidity, curl, board warp, and mechanical tolerance stack-up can consume available motion range quickly.
A practical specification should include nominal correction range, reserve travel, and limit behavior when the process moves outside range.
This approach prevents choosing a precise stage that cannot handle realistic variation across shifts, products, and operating climates.
Check load capacity, stiffness, and moment forces together
Load capacity should never be evaluated as a single vertical weight number, especially in industrial print and converting equipment.
Many applications impose offset loads, lateral forces, cable drag, air-line resistance, or dynamic moments during acceleration and deceleration.
A piezo stage carrying a printhead, sensor, nozzle bar, or small tool may see changing forces throughout the cycle.
If stiffness is insufficient, the positioning system may meet static accuracy requirements but lose quality during live production.
Flexure-based systems are valued because they avoid backlash and friction, but they still have finite stiffness and load limits.
Technical evaluators should review axial load, lateral load, pitch, yaw, roll, and resonant frequency under the planned payload.
For high-speed printing and paper handling, mounting stiffness can be as important as the actuator’s internal specification.
A rigid piezo stage mounted to a flexible bracket will follow the weakness of the installation, not the promise of the catalog.
Request application-specific load diagrams and consider a modal or vibration assessment for machinery with high cyclic excitation.
This is particularly important near corrugators, folder gluers, and post-press lines where mechanical disturbances are persistent.
Evaluate dynamic response under real machine timing
Piezoelectric Positioning Systems are often selected for speed, but speed must be interpreted through settling behavior and control bandwidth.
A system that moves quickly but oscillates after each command may delay the actual moment when usable accuracy is achieved.
Settling time matters in printhead alignment, web-guided inspection, adaptive coating, register correction, and focus control.
For high-throughput equipment, a motion correction that arrives one cycle late may be technically precise but operationally useless.
Evaluators should define the required move distance, acceptable position error, and maximum settling time for the machine cycle.
Closed-loop systems with high-resolution sensors can improve stability, but controller tuning and mechanical resonance remain decisive.
Open-loop piezo actuators may be adequate for simple fast motion, but hysteresis and creep must be acceptable or compensated.
In precision printing environments, closed-loop control is usually preferred when position must be verified rather than assumed.
However, closed-loop feedback adds cost, integration work, and possible sensor bandwidth limitations that must be understood.
The best choice is the system that reaches the required usable position within the available production time.
Understand hysteresis, creep, drift, and thermal effects
Piezo materials deliver exceptional precision, but they are not immune to physical behavior that affects long-term accuracy.
Hysteresis means the actual position may differ depending on whether the actuator approached from increasing or decreasing voltage.
Creep means the position can continue changing slowly after a command, even when the control signal appears constant.
Thermal drift can occur in the actuator, sensor, stage structure, mounting plate, or surrounding machine frame.
These effects are manageable, but they must be considered early when selecting Piezoelectric Positioning Systems for production equipment.
Closed-loop feedback reduces hysteresis and creep by measuring actual position and correcting deviations automatically.
Thermal stability may require material matching, environmental control, warm-up procedures, or software compensation based on measured behavior.
In packaging and paper machinery, ambient temperature and humidity can vary significantly across factories and geographic regions.
A system proven in a clean laboratory may behave differently beside heaters, dryers, steam systems, or high-duty electrical cabinets.
Ask for drift data over time, expected warm-up behavior, and recommended compensation strategy for your machine environment.
Decide between open-loop and closed-loop control carefully
Open-loop piezo positioning uses voltage commands without direct position measurement, making it simpler and often faster to implement.
It can be suitable when relative motion is small, repeatable calibration is possible, and final position verification is not critical.
Closed-loop systems use sensors such as capacitive, strain gauge, or optical feedback to measure and correct actual position.
They are preferred when long-term stability, traceability, and high repeatability are required under changing loads or temperatures.
For technical evaluators, the control choice should reflect risk tolerance and the cost of positioning error.
If an alignment error causes wasted substrate, poor print quality, rejected packaging, or unplanned downtime, feedback becomes more valuable.
In digital printing, closed-loop adjustment can support consistent nozzle alignment and compensate for mechanical or thermal variation.
In inspection modules, closed-loop focus or sensor positioning can protect measurement reliability across long production runs.
Still, closed-loop performance depends on sensor placement, controller tuning, noise management, and mechanical integration quality.
Do not assume that adding feedback automatically solves poor structural design or weak installation discipline.
Assess integration with industrial control architecture
A piezo positioning system must fit the machine’s automation architecture, not exist as an isolated precision component.
Review controller interfaces, command protocols, analog inputs, digital triggers, fieldbus compatibility, safety behavior, and diagnostic functions.
Industrial machinery teams should confirm whether the controller can synchronize with PLCs, motion controllers, cameras, or print data systems.
In high-speed digital print lines, timing relationships between image processing, substrate movement, and actuator correction can be critical.
For post-press applications, synchronization with sheet handling, die-cutting cycles, or inspection triggers may determine actual usefulness.
Evaluate software tools for tuning, monitoring, logging, and remote diagnostics, especially when equipment will be deployed globally.
A technically capable stage can become difficult to support if its controller lacks clear integration paths and service data.
For machinery builders, this affects commissioning time, operator training, spare parts strategy, and after-sales support quality.
Before approval, create an integration checklist covering electrical noise, grounding, cable routing, enclosure rating, and emergency response.
This prevents precision motion from becoming a maintenance burden inside a harsh production environment.
Compare total performance cost, not only purchase price
Technical evaluators often face pressure to justify higher-cost piezo solutions against conventional mechanical or servo-based alternatives.
The business case should include yield improvement, faster setup, reduced manual adjustment, better quality consistency, and lower scrap.
In industrial printing, precise adjustment may reduce registration errors, banding risks, or downtime during product changeovers.
In corrugated and post-press machinery, stable micro-positioning can support quality control where mechanical tolerances are tightening.
In tissue machinery, precise sensor or tooling positioning may improve inspection accuracy and process repeatability at high throughput.
However, not every axis requires piezo technology, and overengineering can make equipment unnecessarily expensive.
Use piezo positioning where micron or sub-micron control directly influences quality, throughput, automation, or measurement reliability.
For rough positioning, heavy travel, or low-precision adjustment, conventional motion systems may remain more economical and robust.
The best procurement decision is usually a hybrid architecture, using piezo systems only where their advantages create measurable value.
This keeps investment focused and helps machinery builders defend performance claims in competitive international tenders.
Build a practical selection checklist before vendor comparison
Before contacting suppliers, define the axis function, required travel, payload, force direction, accuracy target, and repeatability target.
Add the required settling time, operating temperature range, vibration environment, duty cycle, available space, and expected service life.
Specify whether the system will operate open-loop or closed-loop, and whether position data must be logged for quality traceability.
Clarify the installation orientation, cable motion, contamination exposure, grounding requirements, and acceptable controller footprint.
Request performance data under conditions similar to your application, not only ideal bench measurements from a catalog.
Ask suppliers about resonance, thermal drift, sensor noise, controller update rate, calibration method, and failure mode behavior.
If possible, test the candidate stage with the real payload, mounting bracket, command profile, and environmental disturbance.
A short application test often reveals integration issues that are invisible in a specification table.
For mission-critical equipment, consider lifecycle support, repairability, controller availability, firmware stability, and documentation quality.
These factors strongly influence long-term reliability in global printing, packaging, and paper machinery deployments.
Common warning signs during evaluation
Be cautious when a supplier highlights only resolution while avoiding repeatability, settling time, load conditions, or drift data.
Another warning sign is a recommendation that ignores the real payload, mounting geometry, or machine vibration environment.
If accuracy claims are not linked to travel range and temperature, the specification may not represent production performance.
Limited controller documentation can also create risk, especially for machinery builders integrating systems across multiple platforms.
Watch for solutions that require highly delicate handling if the target machine operates in a rugged industrial environment.
Piezo systems can be extremely reliable, but only when properly protected, mounted, wired, and controlled.
Also avoid selecting a long-travel piezo motor when a short-stroke flexure stage would deliver better smoothness and stability.
Conversely, avoid forcing a short-stroke actuator to compensate for machine tolerances that should be solved mechanically.
The strongest selection decisions come from separating mechanical design problems from true precision control requirements.
This distinction prevents expensive precision components from masking issues that belong in the base machine architecture.
Conclusion: choose the system that protects usable accuracy
Piezoelectric Positioning Systems can bring exceptional precision to advanced printing, converting, post-press, and tissue machinery.
Yet the right choice is not simply the system with the smallest resolution or the most impressive laboratory specification.
Technical evaluators should prioritize usable accuracy under load, realistic travel, stiffness, dynamic response, feedback quality, and environmental stability.
They should also evaluate integration effort, diagnostic visibility, lifecycle support, and the economic value of improved process control.
When selected correctly, piezo positioning supports faster alignment, tighter quality control, reduced manual intervention, and more reliable smart manufacturing.
The clearest decision rule is simple: choose the system that maintains required position accuracy inside the real machine, not only on paper.
